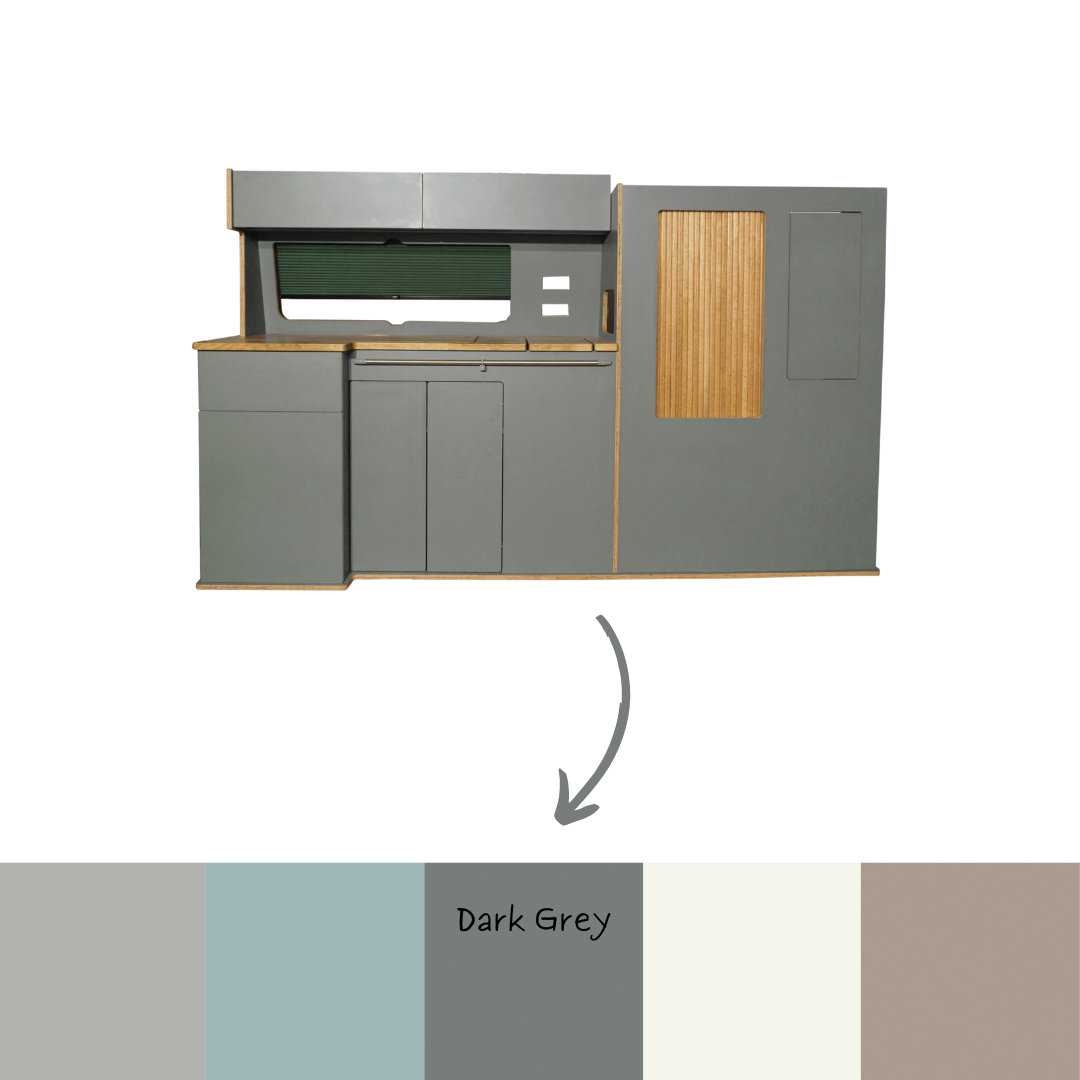

This 130 slimline VW T5/6 kit has been designed and pre-scribed to fit perfectly flush, straight into your camper van, reducing work and saving a huge amount of time.
With our clever integrated floor system, you can build your units with ease, simply click pieces into the rebated floor base, prewire and install any appliances, then simply push the units back and fit
High pressure laminated birch
Solid oak work top and folding table
Real oak tambour door
Integrated floor system for simple installation
Soft close drawer
Soft close door hinges
Overhead LED top locker
Full size window surround splashback
Full LED shelving system throughout
Kickboards for Rock ‘N’ Roll Bed
Table with folding leg & rail
Table storage system
Easy to follow picture instructions
SWB Overall length: 2180mm | Height 1340mm
LWB Overall length 2580mm | Height 1340mm
Work top Height: 760mm
Fridge Aperture Width: 390mm | Height 536mm
Aperture will accommodate most popular campervan 12v fridges, however the fridge door can’t protrude past the fridge width, we recommend the Revace 50l
Rock & Roll bed Suitable for beds 130cm or smaller
Van floor
Must have an overall thickness no greater than 16mm from the ribs (see shop)
Ply-Lining
Must have Two-piece ply-ling on O/S with full height rear quarter (see shop)
