Universal 2kW AUTOTERM Air Diesel Heater Kit

Universal Diesel heater camper/Motorhome Kit - 2kW or 4kW

Autoterm water and air heaters are built to ISO 9001-2015 standards. They also have E2 R10 and E2 R122 approval for whole vehicle approval for use in road vehicles.

We suggest you may wish to upgrade from 2kW to 4kW heater kit if the campervan is a high-top long wheelbase or large campervan. (2kW uses 60mm ducting and 4kW uses 90mm ducting.)

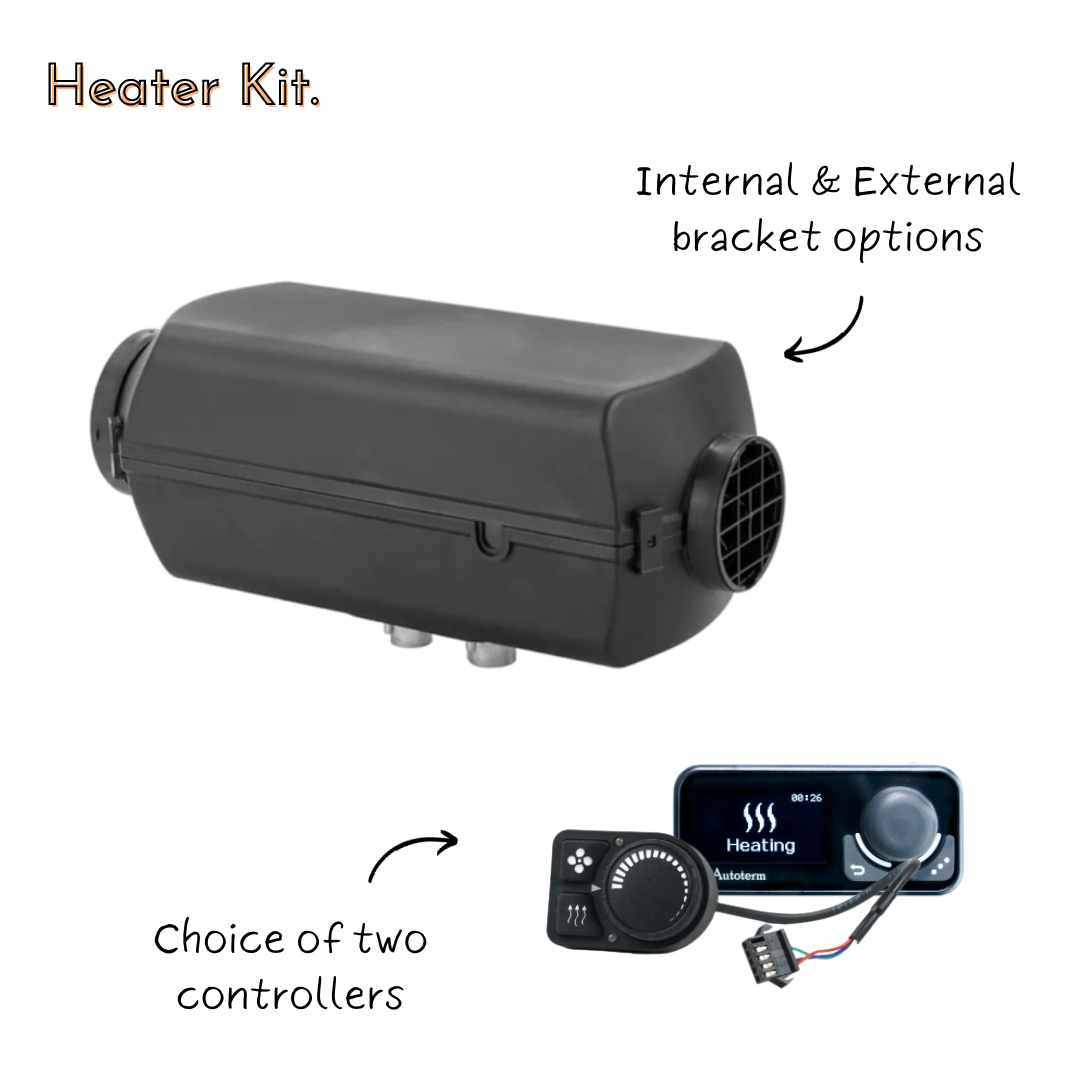

Included in the kit

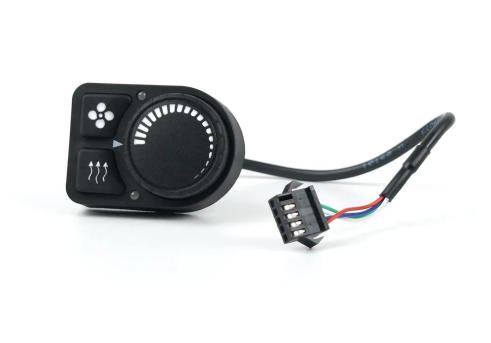

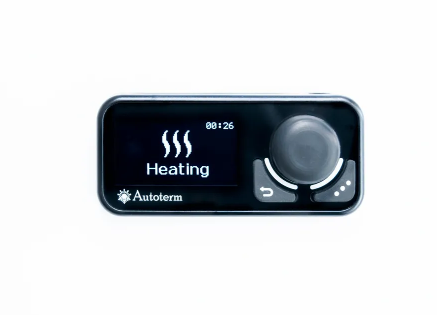

• Controller of your choice
• Fuel pump with mounting bracket
• 1 meter of exhaust with silencer
• 1 fuel dip fuel tube and fuel line
• 1 power cable with integral fuse box
• 1 control panel cable (upgrade options available)
• 1 fuel pump power cable
• A silencer air intake
• 1 exhaust heat lagging
• A selection of nuts and bolts.

The internal kit comes with

• 1 x Heater fitting plate
• 1 x 60mm vent
• 1.5m 60mm Ducting

The External kit comes with

• 1 x External heater box
• 2 x 60mm Vents
• 2m x 60mm Ducting

Product Details

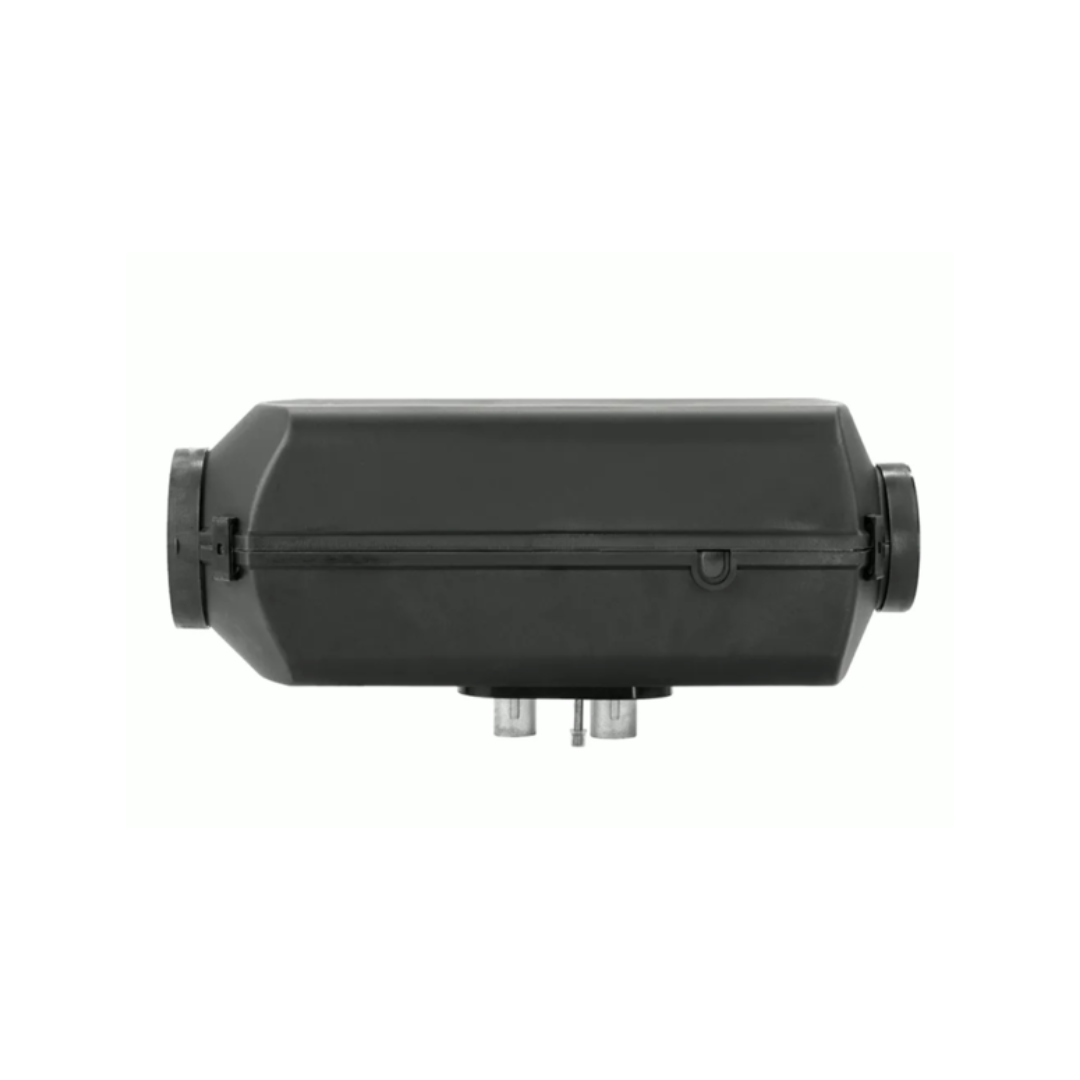

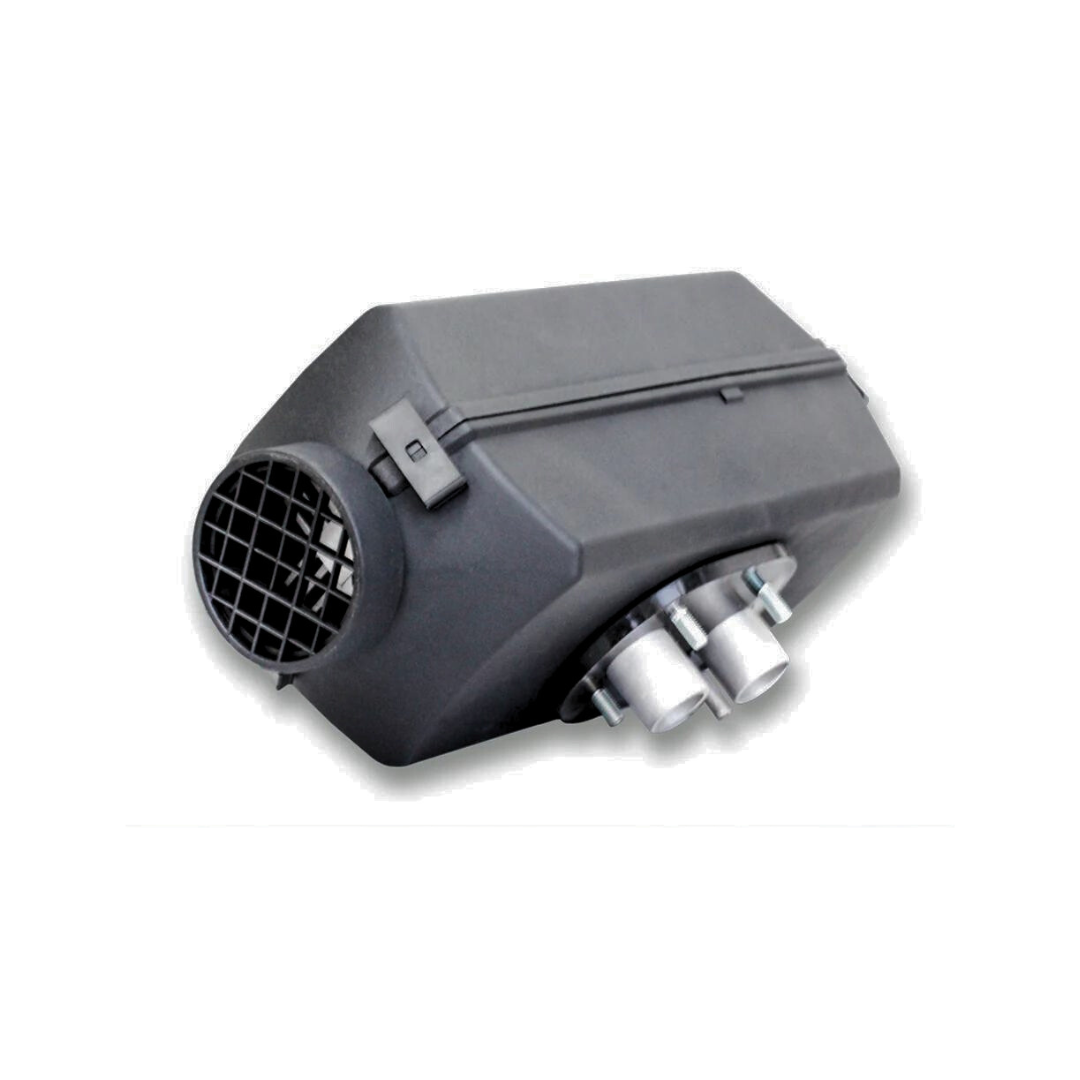

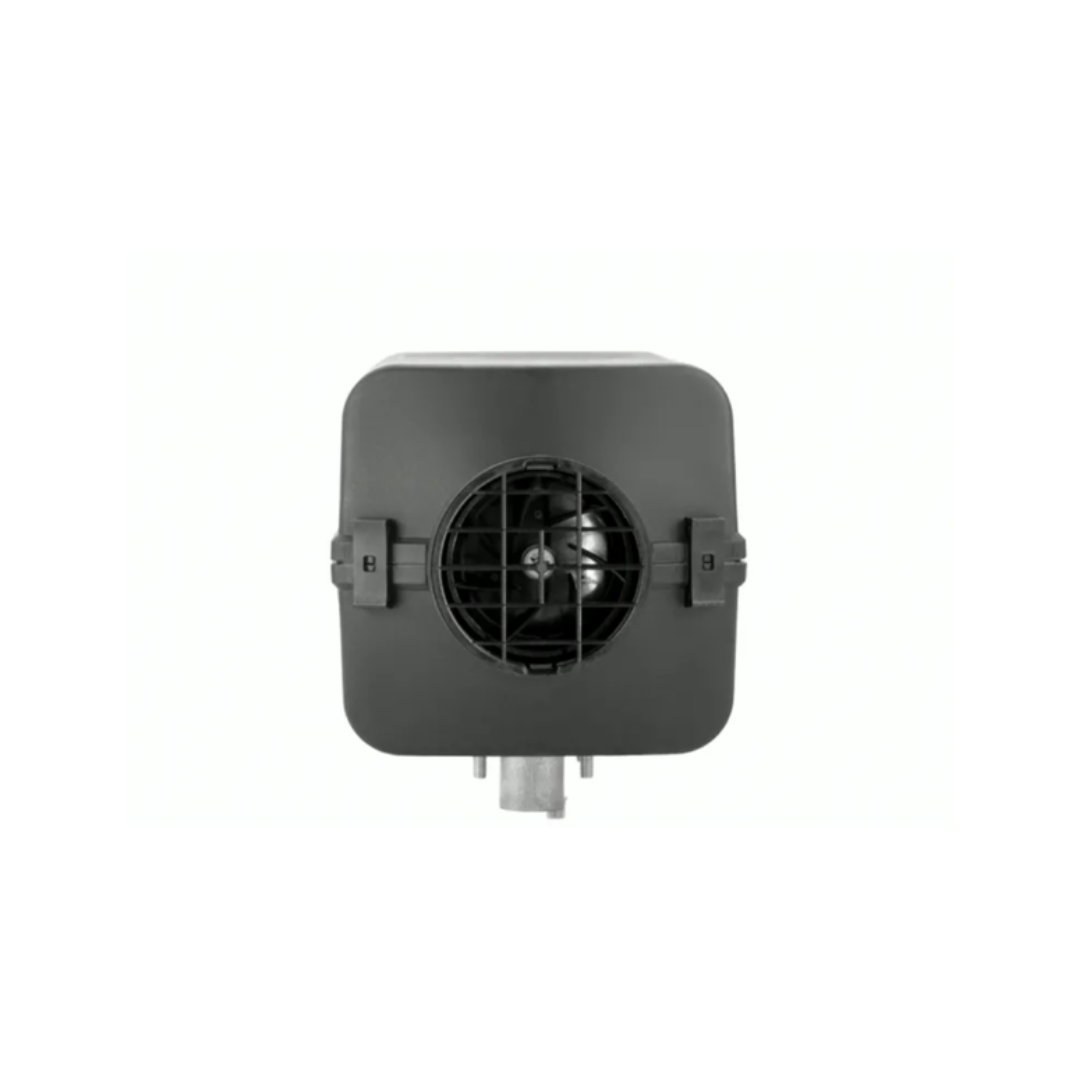

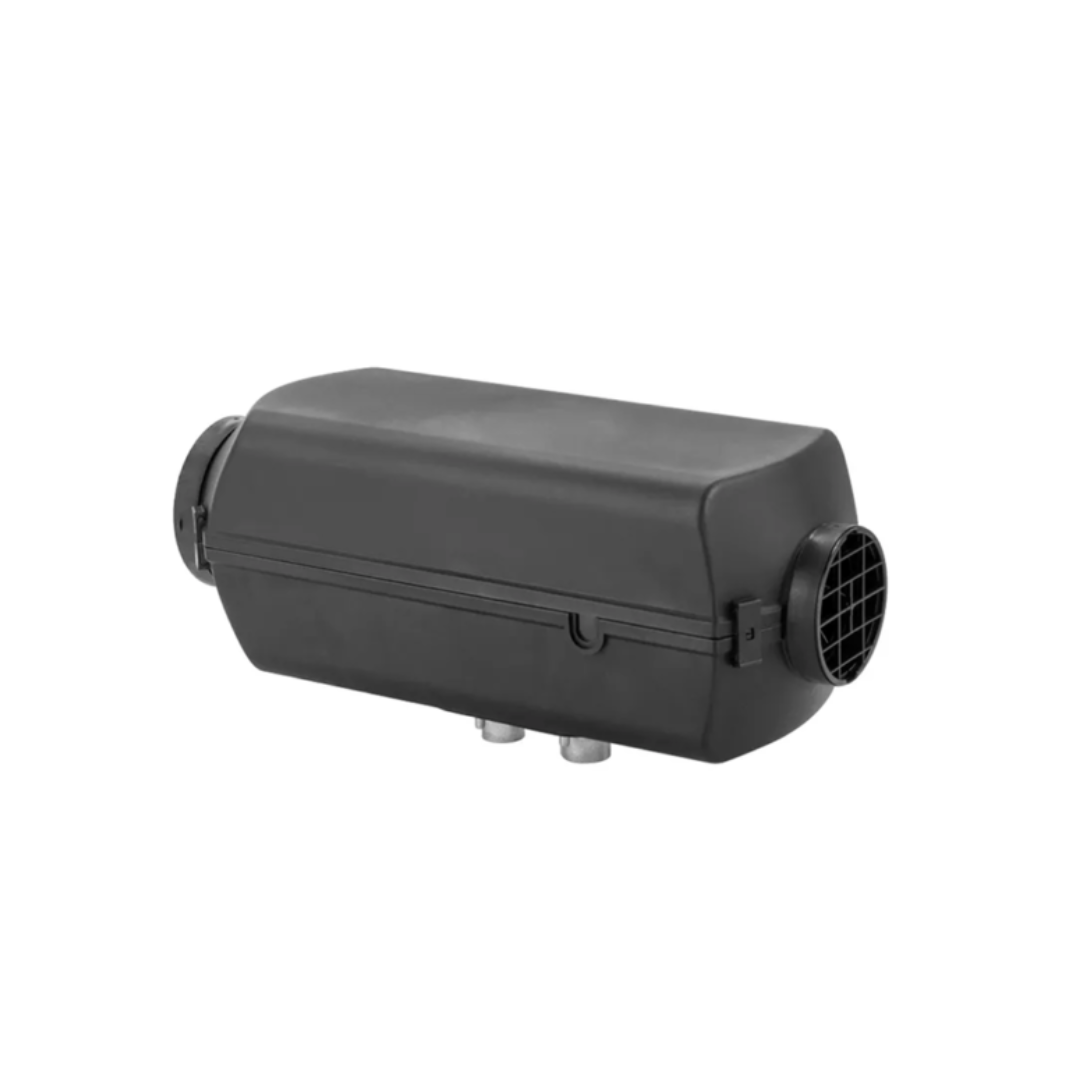

The 2KW PLANAR 2D is the most compact heater model in the production line, it is intended for use in Campervans, motorhomes, crew cabins and work spaces, commercial vans and trucks, as well as boats that are up to 33ft.

The capacity of the PLANAR 2D air heater is between 0.8 kW and 2 kW, and it is capable of heating up 75 m3 of air hourly. It maintains excellent economy and uses between 0.1 litres and 0.24 litres of diesel per hour. They are available in either 12 or 24v version.

Planar diesel heaters have fast become synonymous with great quality and fantastic customer services, all at a fraction of the cost of their competitors.

 Why Buy An Autoterm Planar Heater?

• Best quality diesel heater at a fraction of the price of other Air Diesel Heaters.
• 2 Year Guarantee.
• Low power and fuel consumption.
• Space saving installation.
• Simple to operate.
